Objectives

Refactor the dashboard controller to show summary on of the playlists + link to show playlist details.

Exercise Solutions

This lab requires that the playlist-1 lab be completed. If you have lost your solution, create a new project in Glitch by cloning this repo:

• https://github.com/wit-hdip-comp-sci-2019/playlist-1

Instructions on how to do this are here. Remember to use the url above.

These are three exercises from the last lab:

Exercise 2: Add a new playlist

Extend the JSON file to include an additional playlist - so that three playlists are displayed on the dashboard.

Exercise 3: Introduce IDs

When manipulating data maintained in JSON, or other external format, each object will often require an ID in order to manipulate the information effectively. Introduce an ID for every playlist, and every song.

Exercise 4: New Fields

Extend the playlist to have new entry called duration. Also, extend each song to also have a duration field + a genre field.

Modify the dashboard view to display these new fields.

Solutions

These are solutions to all three exercises:

First the extended model:

models/playlist-store.json

{
  "playlistCollection": [
    {
      "id" : "01",
      "title": "Beethoven Sonatas",
      "duration": 35,
      "songs": [
        {
          "id" : "04",
          "title": "Piano Sonata No. 3",
          "artist": "Beethoven",
          "genre": "Classical",
          "duration": 5
        },
        {
          "id" : "05",
          "title": "Piano Sonata No. 7",
          "artist": "Beethoven",
          "genre": "Classical",
          "duration": 6
        },
        {
          "id" : "06",
          "title": "Piano Sonata No. 10",
          "artist": "Beethoven",
          "genre": "Classical",
          "duration": 4
        }
      ]
    },
    {
      "id" : "02",
      "title": "Beethoven Concertos",
      "duration": 23,
      "songs": [
        {
          "id" : "07",
          "title": "Piano Concerto No. 0",
          "artist": "Beethoven",
          "genre": "Classical",
          "duration": 8
        },
        {
          "id" : "08",
          "title": "Piano Concerto No. 4",
          "artist": "Beethoven",
          "genre": "Classical",
          "duration": 3
        },
        {
          "id" : "09",
          "title": "Piano Concerto No. 6",
          "artist": "Beethoven",
          "genre": "Classical",
          "duration": 4
        }
      ]
    },
    {
      "id" : "03",
      "title": "Beethoven Variations",
      "duration": 67,
      "songs": [
        {
          "id" : "10",
          "title": "Opus 34: Six variations on a theme in F major",
          "artist": "Beethoven",
          "genre": "Classical",
          "duration": 11
        },
        {
          "id" : "11",
          "title": "Opus 120: Thirty-three variations on a waltz by Diabelli in C majo",
          "artist": "Beethoven",
          "genre": "Classical",
          "duration": 45
        }
      ]
    }
  ]
}

Now we can revise the dashboard to show additional fields:

views/dashboard.hbs

{{> menu id="dashboard"}}

{{#each playlists}}
  <section class="ui segment">
    <h2 class="ui header">
      {{title}}
    </h2>
    <p> Total Duration: {{duration}} </p>
    <table class="ui table">
      <thead>
        <tr>
          <th>Song</th>
          <th>Artist</th>
          <th>Genre</th>
          <th>Duration</th>
        </tr>
      </thead>
      <tbody>
        {{#each songs}}
          <tr>
            <td>
              {{title}}
            </td>
            <td>
              {{artist}}
            </td>
            <td>
              {{genre}}
            </td>
            <td>
              {{duration}}
            </td>
          </tr>
        {{/each}}
      </tbody>
    </table>
  </section>
{{/each}}

The dashboard should look like this now:

Playlist Summaries

We would like to change the app to just display a list of playlists on the dashboard, not the complete contents of each playlist. Replace the current dashboard with the following:

views/dashboard.hbs

{{> menu id="dashboard"}}

{{#each playlists}}
  <section class="ui segment">
    <h2 class="ui header">
      {{title}}
    </h2>
    <p> Total Duration: {{duration}} </p>
    <a href="#"> View </a>
  </section>
{{/each}}

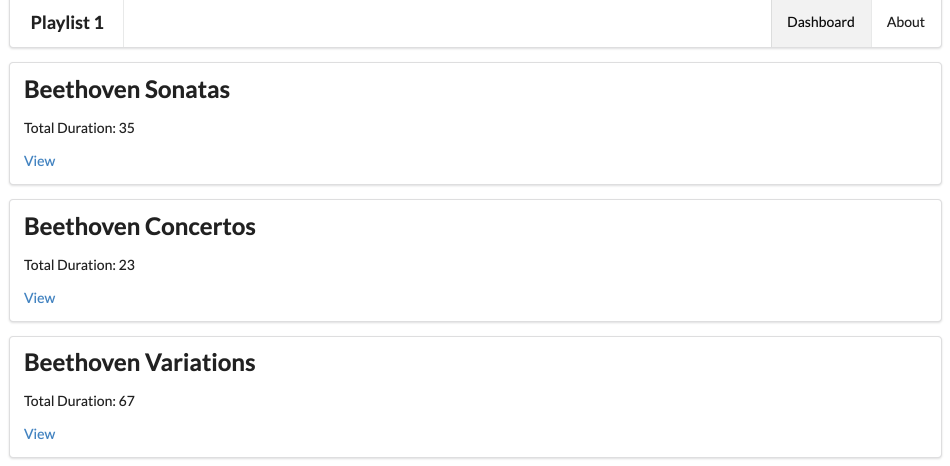

This will render like this:

The view links are currently inert, but we would like them to cause a new view to be rendered, containing the playlist concerned.

As each playlist now has an ID, this can make this convenient to implement. Here is a new version of the view link:

    <a href="/playlist/{{id}}"> View </a>

With this change in place, try hovering over each view link (without pressing it). In Chrome, keep an eye on the stats bar which should show a the link including the id:

Hover over each link and note how the ID changes. Clicking on any link causes the following error:

Cannot GET /playlist/02

We need a new controller to display a new view containing the playlist details. We will do this in the next step.

Router + Controller

The starting point for any new link in our app is to first define a route to support this link. All supported routes are defined in routes.js

This is the current version:

routes.js

'use strict';

const express = require('express');
const router = express.Router();

const dashboard = require('./controllers/dashboard.js');
const about = require('./controllers/about.js');

router.get('/', dashboard.index);
router.get('/dashboard', dashboard.index);
router.get('/about', about.index);

module.exports = router;

In particular, these are the three routes currently supported:

router.get('/', dashboard.index);
router.get('/dashboard', dashboard.index);
router.get('/about', about.index);

These are the three patterns our app responds to: /, /dashboard and /about. Any other pattern will generate a not found error from our app.

We now have a new pattern /playlist/id, which we would like to route to a controller that would render a new view detailing the playlist contents. Also note that each of these statements matches a route pattern with a function inside a controller.

So, for instance, this import + route:

const about = require('./controllers/about.js');
...
router.get('/about', about.index);

... ensures that this function would be called if the route was triggered:

const about = {
  index(request, response) {
    const viewData = {
      title: 'About Playlist Maker',
    };
    response.render('about', viewData);
  },
};

Make sure you understand this connection before proceeding. Try changing the spelling of the index method for instance - and see what happens (make sure to change it back!).

Controller/View/Route

Bringing in a new controller usually requires three things:

• a controller
• a view
• a route

Here is is the new controller:

controllers/playlist.js

'use strict';

const logger = require('../utils/logger');
const playlistCollection = require('../models/playlist-store.js');

const playlist = {
  index(request, response) {
    const viewData = {
      title: 'Playlist',
    };
    response.render('playlist', viewData);
  },
};

module.exports = playlist;

Create this in glitch by pressing the New File button:

Make sure to enter the folder + file name as shown above.

This new controller will render a view called playlist. Create this view in glitch now:

views/playlist.hbs

{{> menu}}

<section class="ui center aligned middle aligned segment">
  <h2 class="ui header">
    Playlist Details...
  </h2>
</section>

Finally, the route. This will require the controller to be imported at the top of the module:

routes.js

...
const playlist = require('./controllers/playlist.js');
...

... and then we can add the new route:

router.get('/playlist/:id', playlist.index);

Notice that the route includes this segment: /:id. This means it matches any route that includes an extra wildcard segment at the end.

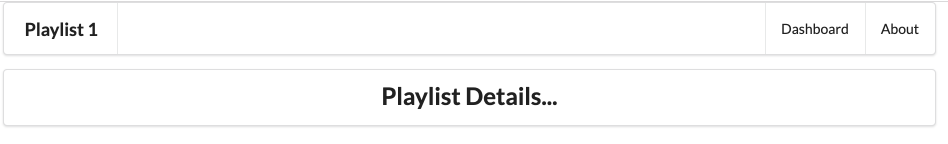

Implement all of the above now and verify that the view is rendered as expected.

It does not display the playlist yet - just a placeholder for the moment:

Playlists

In order to display the correct playlist, we need to extract the id from the url. Modify the playlist controller index method as follows:

  index(request, response) {
    const playlistId = request.params.id;
    logger.info('Playlist id = ' + playlistId);
    const viewData = {
      title: 'Playlist',
    };
    response.render('playlist', viewData);
  },

(be careful - it is just the index method we are replacing - not the entire module)

We are extracting and logging the id here:

    const playlistId = request.params.id;
    logger.info('Playlist id = ' + playlistId);

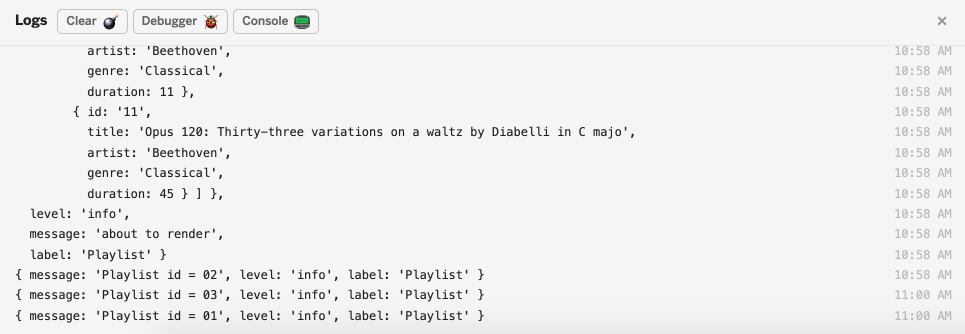

Run the app and select each of the playlist links in turn. The logs will display each of the Ids as you do this:

We need to find a way of locating the playlist with the id, and then pass this specific playlist to the view to be rendered. This requires a rethink of the model, in particular the playlist-store.js module.

This currently looks like this:

models/playlist-sto

"use strict";

const playlistCollection = require("./playlist-store.json").playlistCollection;

module.exports = playlistCollection;

All it is doing is locating the playListCollection array in the playlist-store.json file and exporting it to whomsoever requires it.

Here is a new version of this module:

models/playlist-store.js

'use strict';

const playlistStore = {

  playlistCollection: require('./playlist-store.json').playlistCollection,

  getAllPlaylists() {
    return this.playlistCollection;
  },

  getPlaylist(id) {
    let foundPlaylist = null;
    for (let playlist of this.playlistCollection) {
      if (id == playlist.id) {
        foundPlaylist = playlist;
      }
    }

    return foundPlaylist;
  },
};

module.exports = playlistStore;

In this version, we have an object playlsitStore one attribute:

• playListCollection: this is the array of playlists loaded from the json file.

and two functions:

• getAllPlaylists() : return all playlists
• getlPlaylist(id): locate and return a specific playlist.

The Dashboard controller will have to be refactored to use this object:

controllers/dashboard.js

"use strict";

const logger = require("../utils/logger");
const playlistStore = require('../models/playlist-store');

const dashboard = {
  index(request, response) {
    logger.info('dashboard rendering');
    const viewData = {
      title: 'Playlist Dashboard',
      playlists: playlistStore.getAllPlaylists(),
    };
    logger.info('about to render', playlistStore.getAllPlaylists());
    response.render('dashboard', viewData);
  },
};

module.exports = dashboard;

In the above we are importing the playListStore object. Then, when we are creating the viewData object, we are calling playlistStore.getAllPlaylists(). This will place all playlists into the viewData object.

Finally, the playlists controller + view can be implemented:

controllers/playlist.js

'use strict';

const logger = require('../utils/logger');
const playlistStore = require('../models/playlist-store');

const playlist = {
  index(request, response) {
    const playlistId = request.params.id;
    logger.debug('Playlist id = ', playlistId);
    const viewData = {
      title: 'Playlist',
      playlist: playlistStore.getPlaylist(playlistId),
    };
    response.render('playlist', viewData);
  },
};

module.exports = playlist;

Notice the way in which we are creating the viewData object this time:

    const viewData = {
      title: 'Playlist',
      playlist: playlistStore.getPlaylist(playlistId),
    };

We are getting as specific playlist - with the id playlistId - and placing it in the viewData object.

Now we can now rework playlist.hbs to display the playlist title + trigger listsongs.hbs:

views/playlist.hbs

{{> menu}}

<section class="ui center aligned middle aligned segment">
  <h2 class="ui header">
    {{playlist.title}}
  </h2>
  {{> listsongs}}
</section>

Listsongs will pick up the playlist and display each song (look at the listsongs.hbs again)

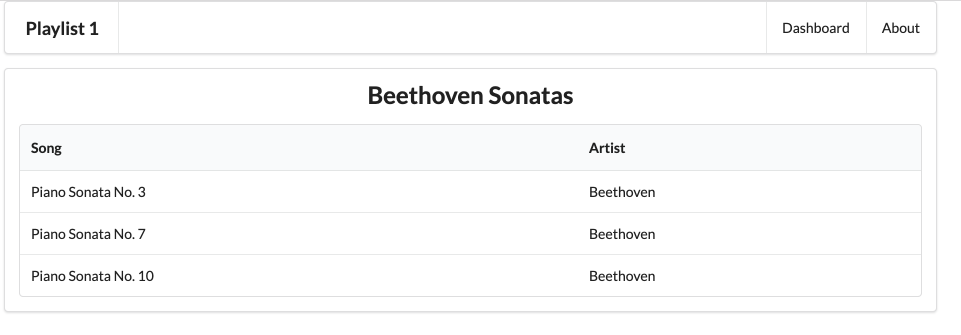

The app should now run as expected, with playlist summaries on the dashboard, and a view link rendering the playlists details:

Deleting Songs : Part 1

Having a playlist app, without the ability to create/delete songs or playlists is clearly very limited. We have, essentially, an app that allows us to Read our models, but not Create, Update or Delete elements of the model.

We can start with providing a facility to delete songs from individual playlists. At the end of this step our view will look like this:

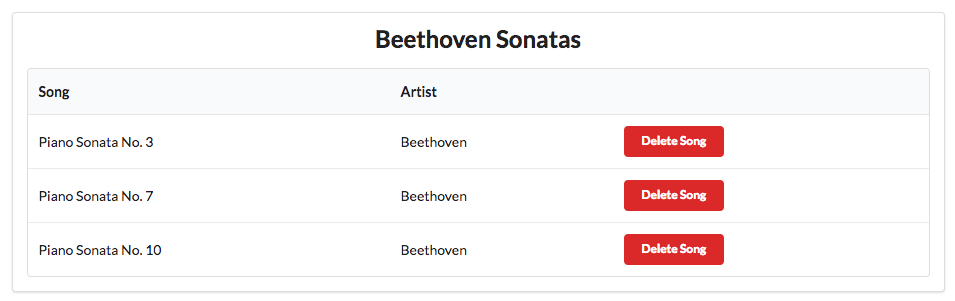

Pressing the delete button should remove the corresponding song.

Any new button/link/action on our page requires:

• an element in a view
• a route matching the view element
• a matching controller function

.. and it may also involve some interaction with the model.

View

The new button must appear in each song row:

views/partials/listsongs.hbs

    ...
        <td>
          <a href="/playlist/{{../playlist.id}}/deletesong/{{id}}" class="ui tiny red button">Delete Song</a>
        </td>
    ...

Route

A new route - containing both the playlist and song id - and linking to a new function in the playlist controller:

routes.js

router.get('/playlist/:id/deletesong/:songid', playlist.deleteSong);

Controller

This is a new method to handle this route in the playlist controller:

controllers/playlist.js

  deleteSong(request, response) {
    const playlistId = request.params.id;
    const songId = request.params.songid;
    logger.debug(`Deleting Song ${songId} from Playlist ${playlistId}`);
    playlistStore.removeSong(playlistId, songId);
    response.redirect('/playlist/' + playlistId);
  },

Model

The model now needs a new method to delete a song, given the id of the playlist and the song:

models/playlist-store.js

  removeSong(id, songId) {
    const playlist = this.getPlaylist(id);

    // TODO : remove the song with id songId from the playlist
  },

Try all of this now - and verify that the logs shows the attempt to delete the song when the button is pressed.

We havent actually deleted the song - we will leave that to the next step.

Deleting Songs : Part 2

There are many techniques for deleting an element from an array, which require more in depth Javascript knowledge. However, we have a simpler solution for the moment via the lodash library.

At the top of our playlist-store.js module, import this library:

models/playlist-store.js

const _ = require('lodash');

Here is the complete removeSong function:

  removeSong(id, songId) {
    const playlist = this.getPlaylist(id);
    _.remove(playlist.songs, { id: songId });
  },

This library is already installed in our project template - and you can read about how it works and what is does:

• https://lodash.com/

This is a modern, comprehensive library for managing data structures in Javascript. This video is the introduction to a series on lodash:

• https://youtu.be/GUGuXsEYtLc?list=PLTgRMOcmRb3OL-PKT5FvIBdXVazTNTl-_

Which will give you a very brief idea of some of the features of this library. This library has many features and capabilities and we will explore some of them in subsequent labs.

As a start - we can simplify the getPlaylist function:

  getPlaylist(id) {
    let foundPlaylist = null;
    for (let playlist of this.playlistCollection) {
      if (id == playlist.id) {
        foundPlaylist = playlist;
      }
    }

    return foundPlaylist;
  },

This performs a linear search to locate and return a playlist with a matching id. This can be simplified using lodash:

  getPlaylist(id) {
    return _.find(this.playlistCollection, { id: id });
  },

In future, when we are working with our playlists, we will usually check with lodash when we need to do anything, to see if it has a shorter/easier technique than writing our own algorithms.

For some more advanced uses, skim read this:

• http://colintoh.com/blog/lodash-10-javascript-utility-functions-stop-rewriting

Exercises

If you want to download a complete version of the app as it should be at the end of this lab, then create a new Glitch project, and clone this repo:

• https://github.com/wit-hdip-comp-sci-2019/playlist-2

Exercise 1: UX Enhancements

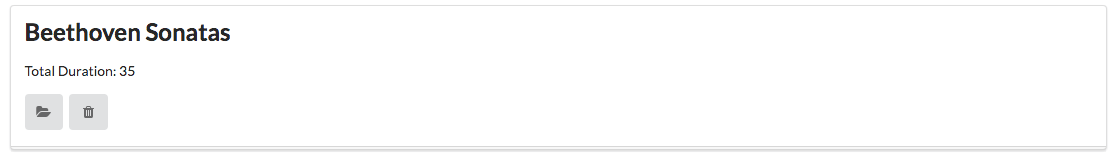

Introduce a 'Delete Playlist' button for each playlist, represented by a trash icon. E.g:

In addition, the view link is replace by a folder open icon.

Bind the delete playlist button to a new function to be implemented in the Dashboard controller, which should log the id of the playlist to be deleted.

Exercise 2: Delete Playlist Functionality

Make the button actually delete the denoted playlist.

HINT: This is a new function in the playlist-store module to delete a playlist, given an ID:

removePlaylist(id) {
  _.remove(this.playlistCollection, { id: id });
},

Try to implement the rest of the feature, using the song delete feature as a guide.
